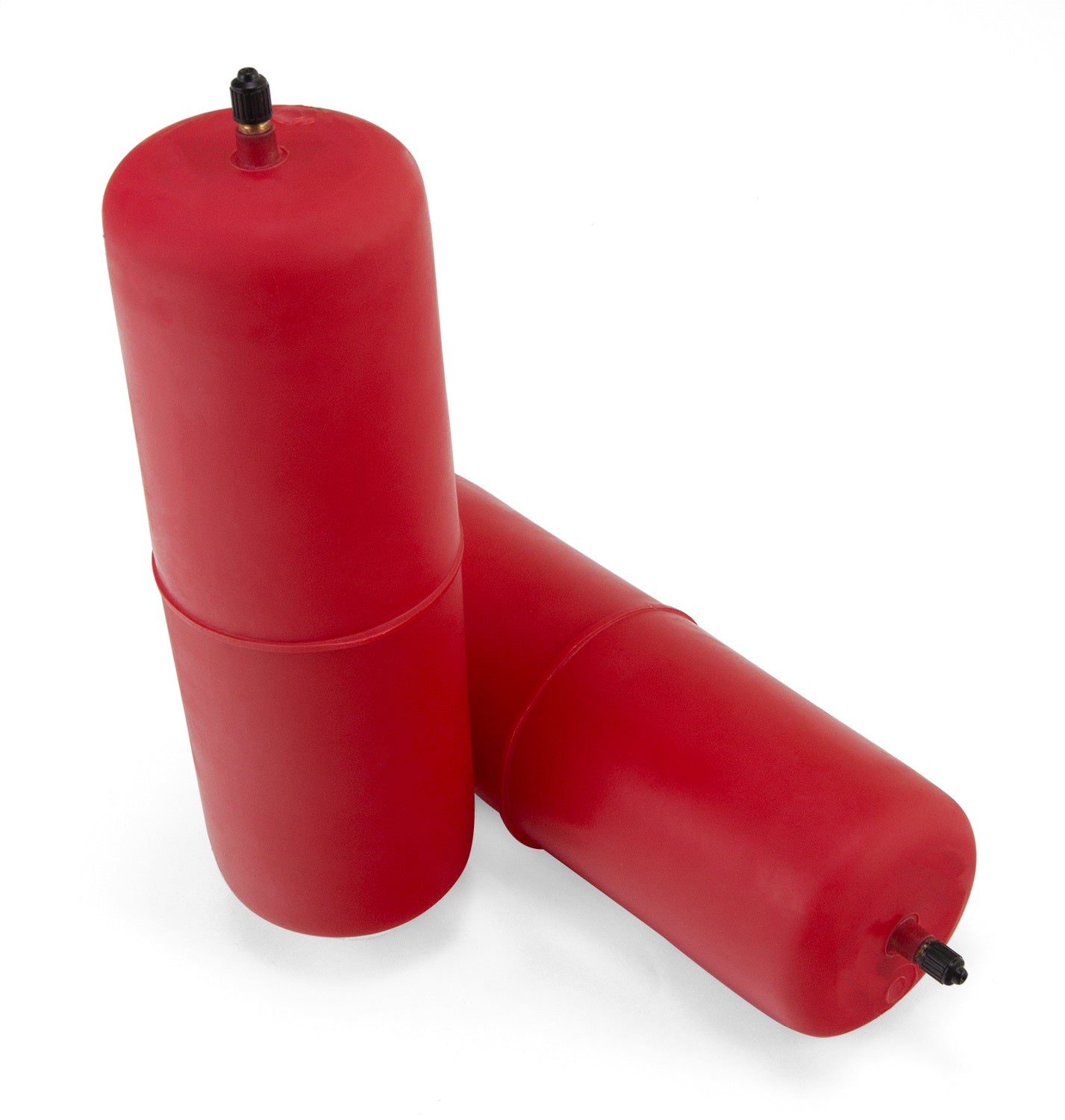

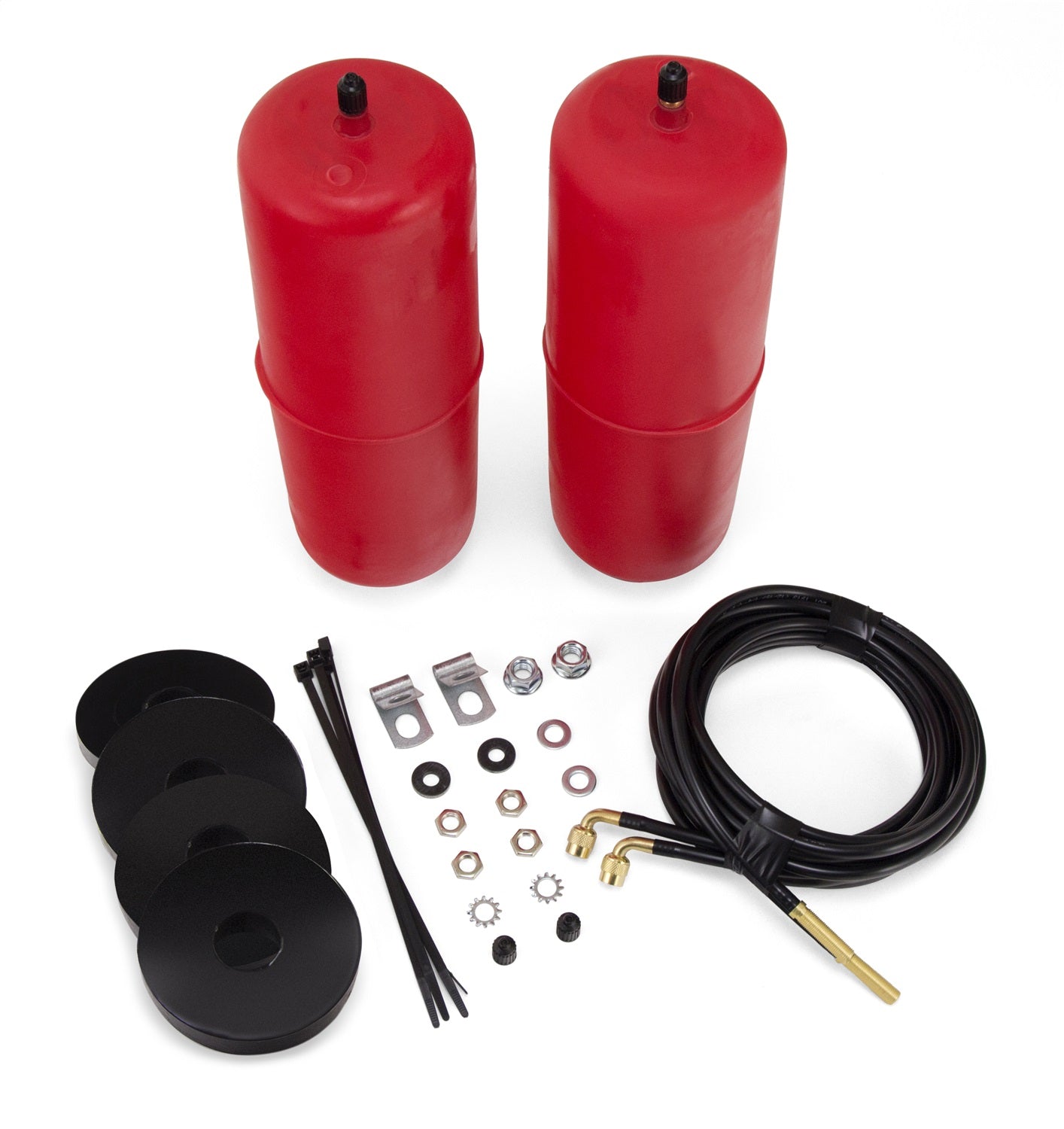

The Air Lift 1000 Front Air Spring Kit (81560) is designed to add dependable front-end load support for vehicles equipped with front coil spring suspensions, including a wide range of GM P-30 / P-32 Class A motorhome chassis, select Class C cutaway applications, and multiple GM van/SUV/truck platforms. These adjustable air springs install inside the factory coil springs, helping eliminate bottoming out, reduce harsh ride, and improve stability when carrying weight or traveling fully loaded.
With up to 1,000 lbs. of load-leveling capacity, the Air Lift 1000 system is fully adjustable from 5–35 PSI, allowing you to fine-tune ride height and comfort based on load conditions. Built from tough molded polyurethane, these air springs are rugged, durable, and designed for long service life.
Installation is no-drill and typically takes one hour or less, making it a smart upgrade for RV owners and drivers looking for improved handling, comfort, and control.
*Do not exceed the vehicle’s GVWR.
Fits the following applications (as provided):
1963–2005 Chevrolet Motorhome Class A (P-30 / P-32)
1963–2005 GMC Motorhome Class A (P-30 / P-32)
1994–1996 Chevrolet Motorhome Class C (GP-30 Cutaway Chassis)
1990–1996 Chevrolet Motorhome Class C (G-30 / GP-30 Cutaway Chassis)
1970–1996 Chevrolet G10/G20/G30 Vans
1970–1995 GMC G15/G25/G35 Vans (Rally/Vandura/Base as listed)
1974–1986 Chevrolet C10/C20/C30 Pickup & Suburban (as listed)
1974–1986 GMC C1500/C2500/C3500 Pickup & Suburban (as listed)
1987 Chevrolet R10/R20/R30 Pickup & Suburban (as listed)
1987 GMC R1500/R2500 Pickup & Suburban (as listed)
1988 Chevrolet R10/R20 Suburban (as listed)
1989–1991 Chevrolet R1500/R2500 Suburban (as listed)
1990–1991 GMC R1500/R2500 Suburban (as listed)
1988–1991 Chevrolet/GMC Blazer/Jimmy (as listed)
Fitment Note: This kit covers many applications across multiple decades. Always confirm chassis/trim compatibility before ordering.
Part Number: 81560
Series: Air Lift 1000
Application Type: Front Kit
Load-Leveling Capacity: Up to 1,000 lbs.*
Operating Pressure: 5–35 PSI
Replacement Air Spring: 81260
Drilling Required: No
Dimensions & Weight:
Weight: 3 lb
Width: 10.3 in
Depth: 12.5 in
Height: 6 in
