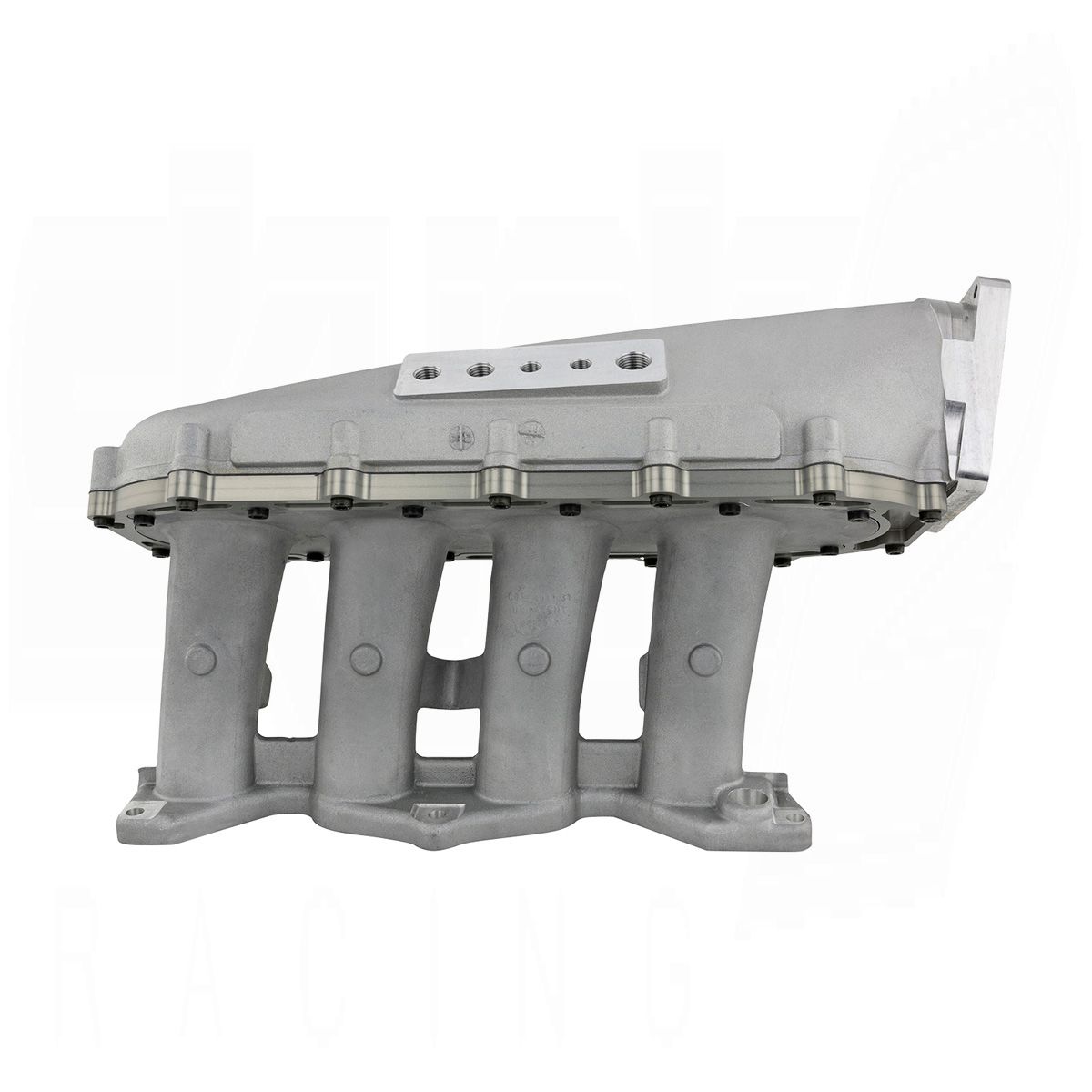

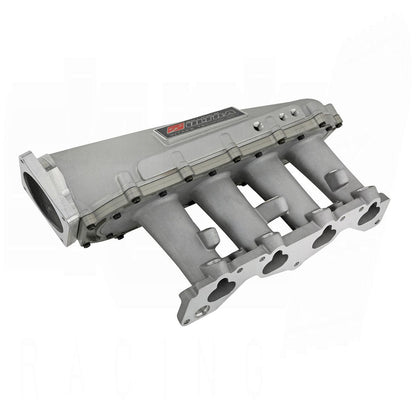

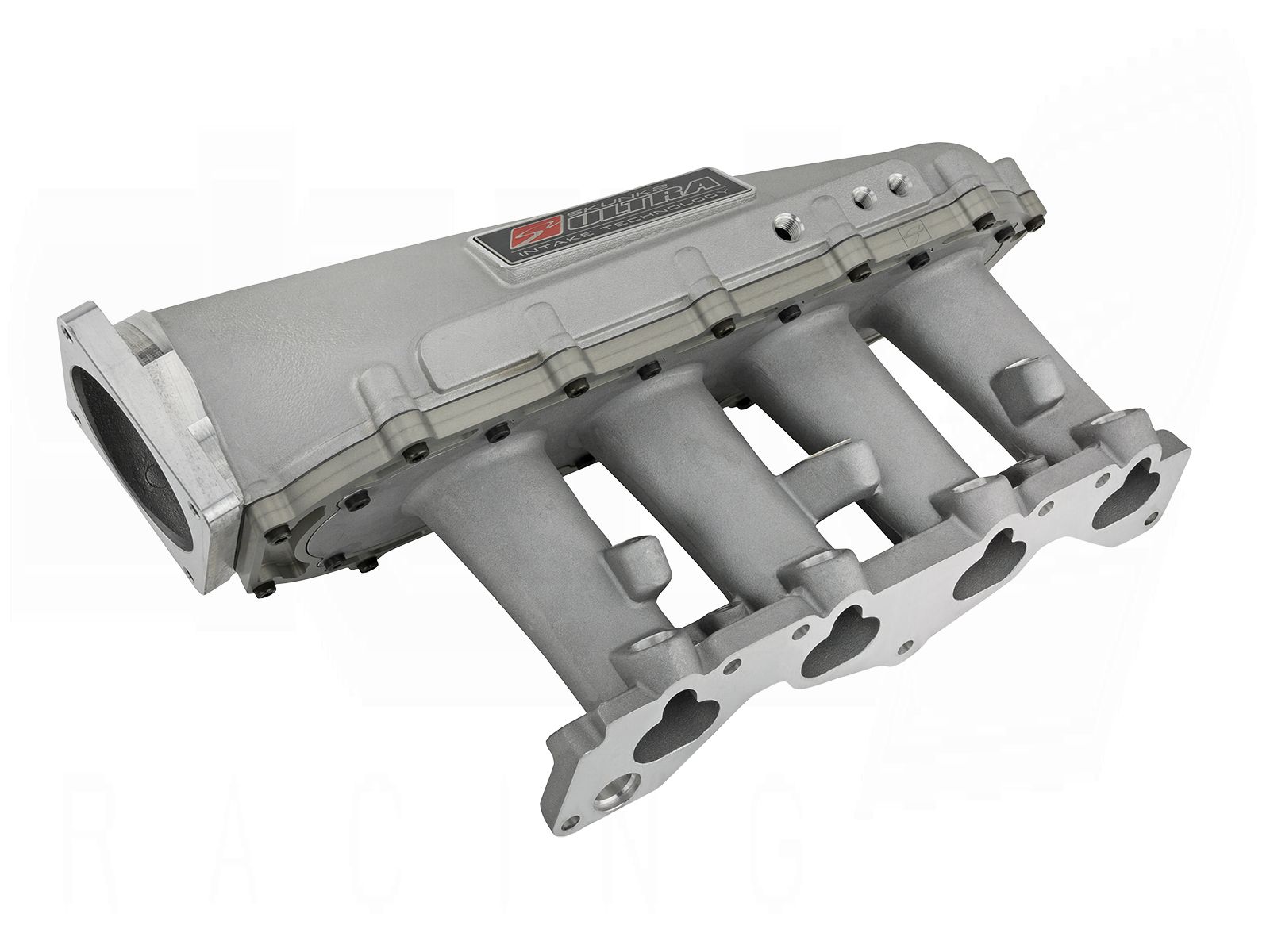

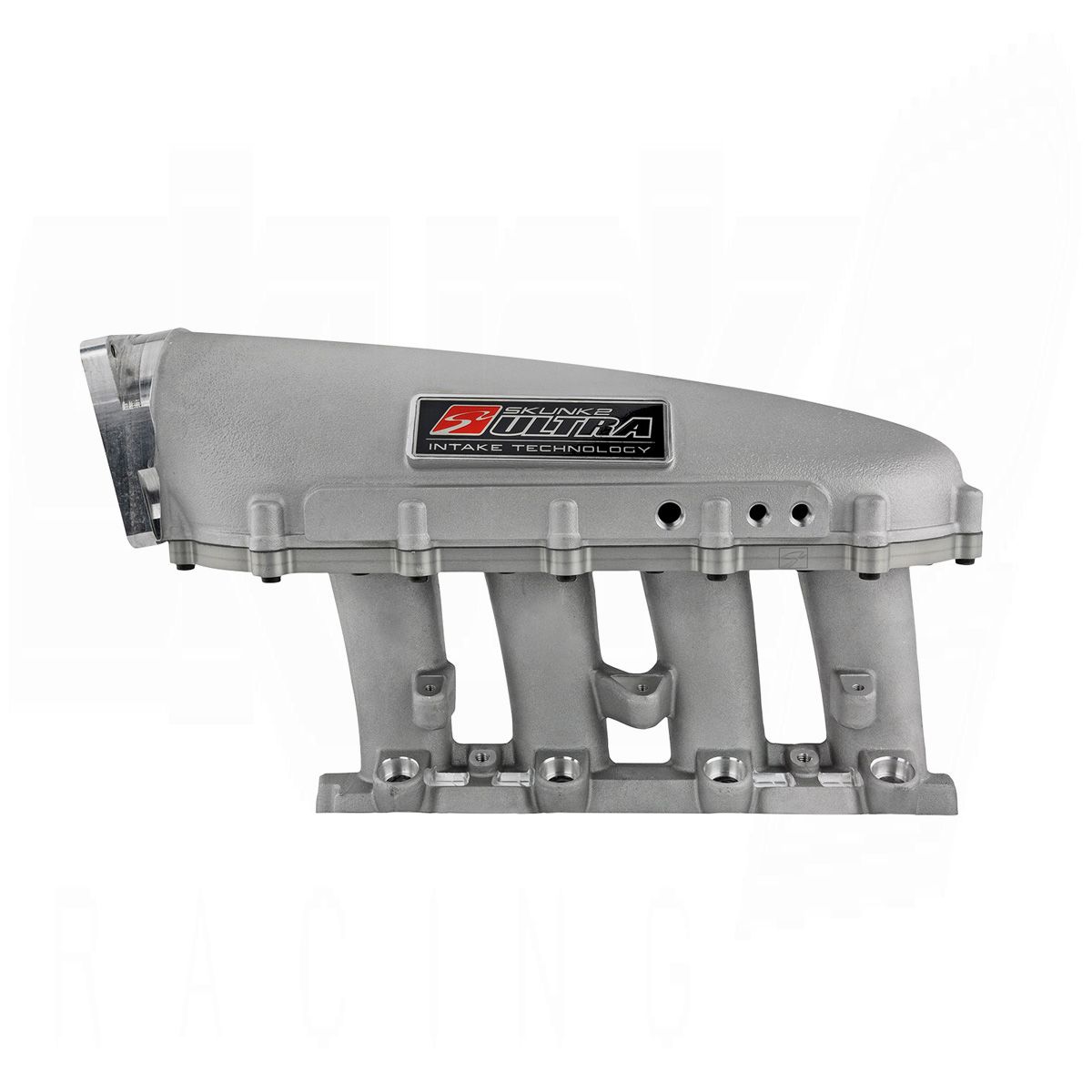

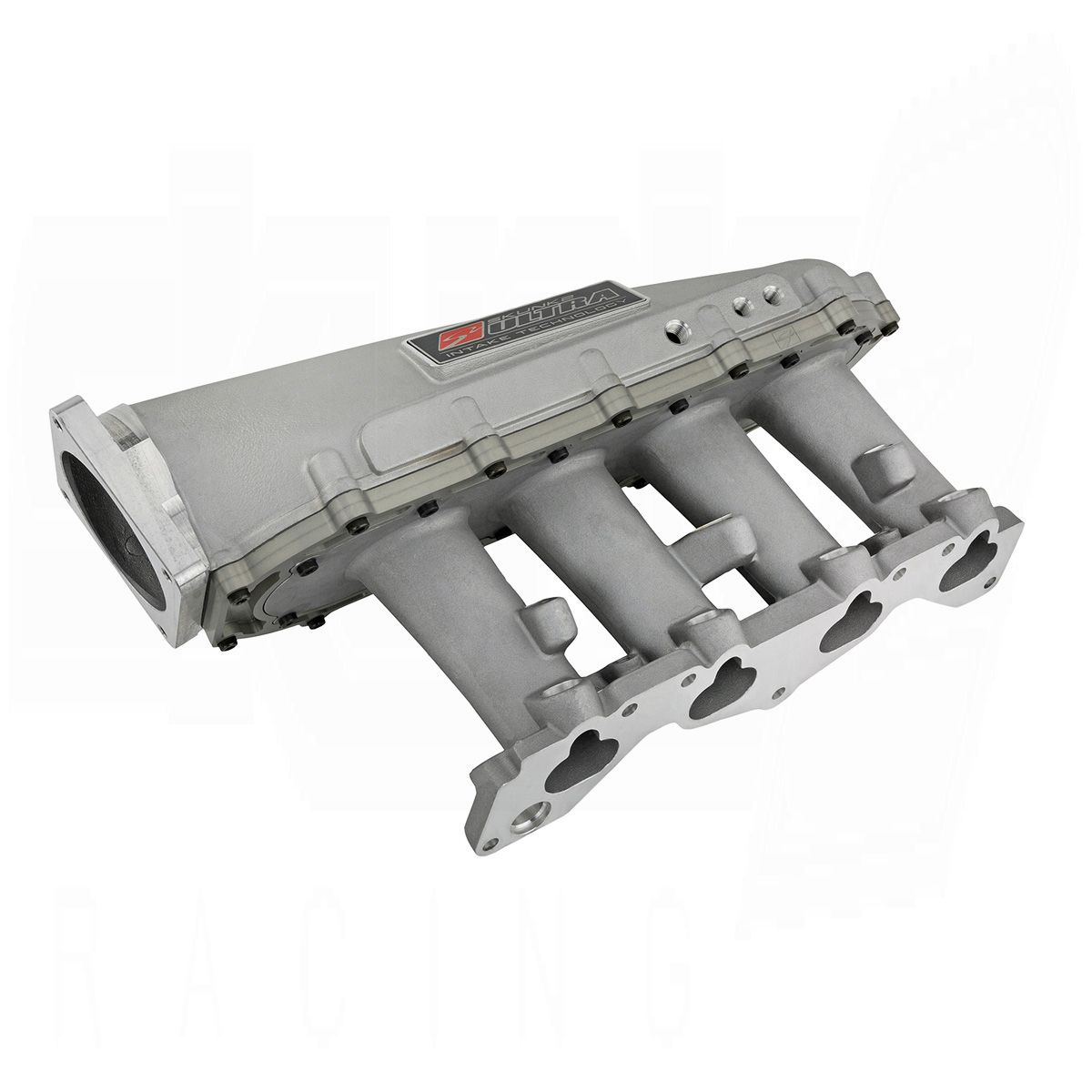

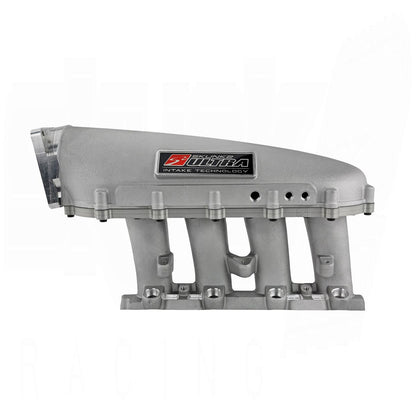

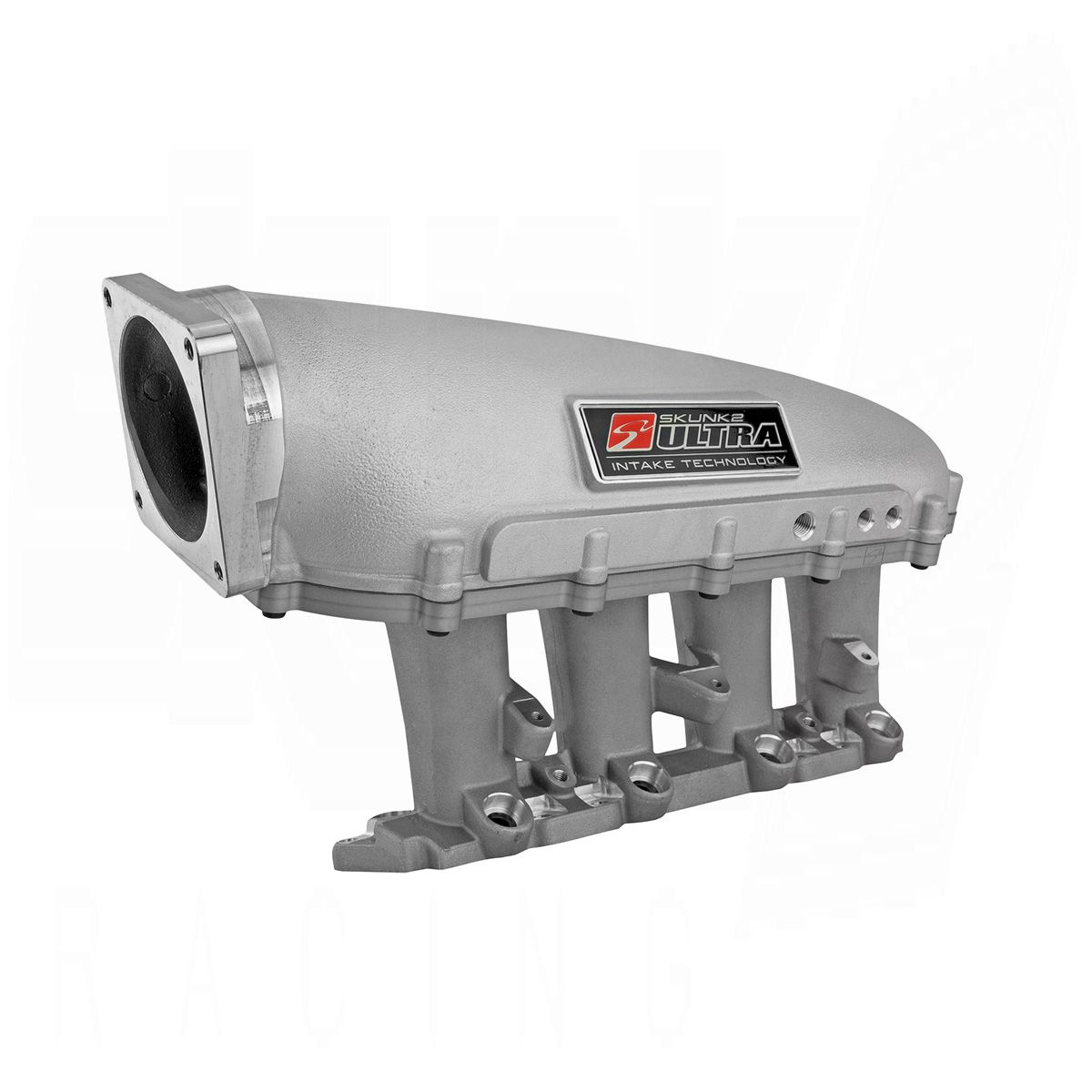

Skunk2 Ultra Race Intake Manifold – Honda D-Series VTEC Engines

The Skunk2 Ultra Race Intake Manifold is purpose-built for high-horsepower D-Series VTEC applications. Cast from aircraft-grade A356 aluminum, this two-piece modular design allows for extensive tuning flexibility, porting, and increased airflow. The Ultra Race manifold is engineered for race-only use, supporting naturally aspirated builds up to 450hp and forced induction setups from 650hp to over 1000hp with optional plenum spacers.

Featuring 6.7" tapered runners with 81mm raised velocity stacks, a massive 3.5L plenum volume (expandable to 4.5L), and a 90mm throttle body flange with standard 5.0L Ford bolt pattern, this manifold supports secondary injectors for added fuel delivery under high boost or RPM. It includes multiple NPT ports for sensors and vacuum accessories and is finished in a durable black wrinkle powder coat with a Skunk2 Pro Series badge.

Key Features:

• High-performance intake manifold for D-Series VTEC race builds

• Two-piece modular A356 aluminum construction

• 3.5L plenum volume (expandable to 4.5L with spacers)

• Tapered 6.7" runners with raised 81mm velocity stacks

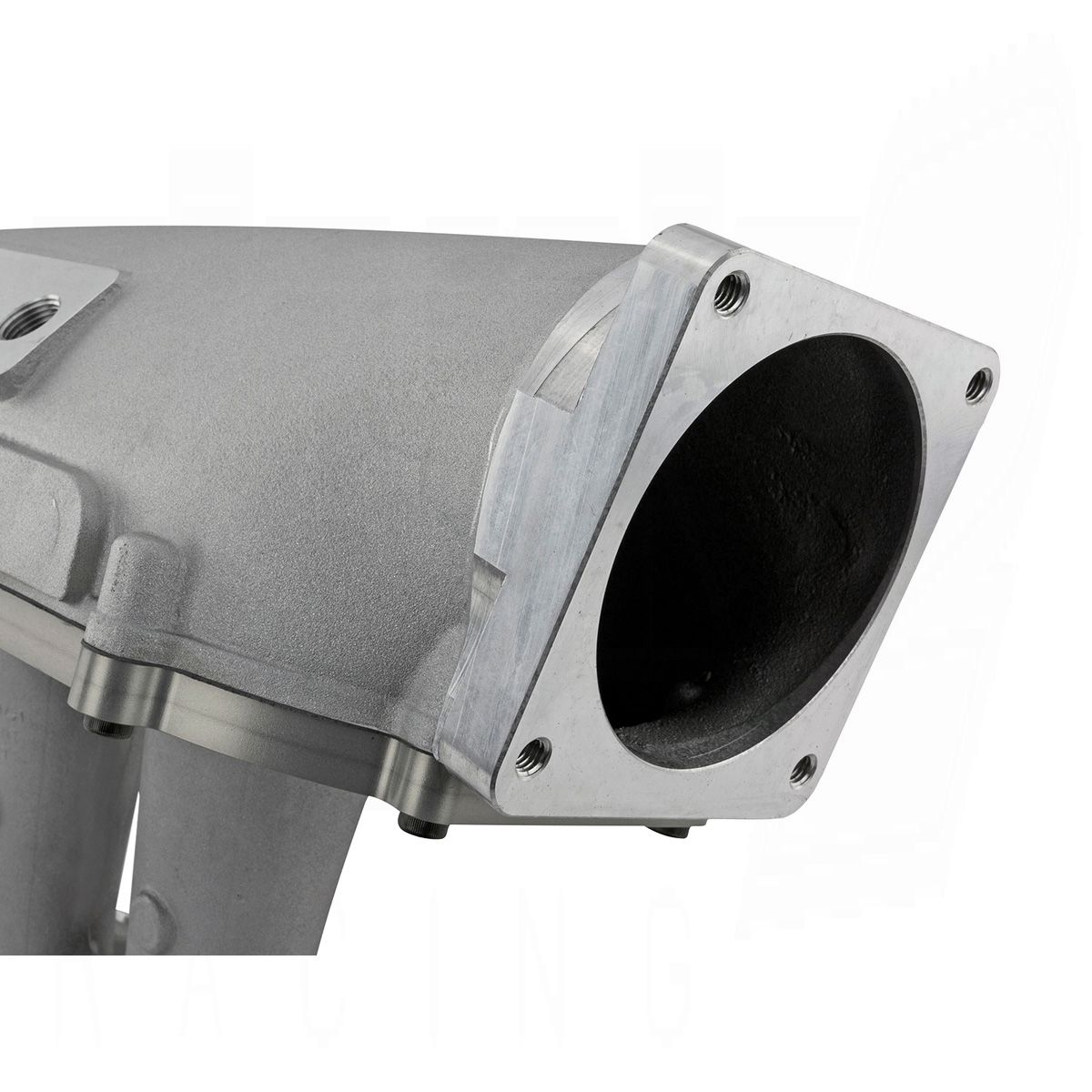

• 90mm throttle body flange (Ford 5.0L pattern)

• Provisions for secondary injectors and fuel rail

• 4x 1/8” NPT, 3x 1/4” NPT, and 1x OEM AIT port

• Hi-grade hardware and gasket included

• Vacuum tested and black wrinkle coated

Note: For race applications only. Not intended for street use.

Optional Plenum Spacers (Sold Separately):

• 1L Silver (P/N 907-05-9001) / 1L Black (P/N 907-05-9051)

• 2L Silver (P/N 907-05-9002) / 2L Black (P/N 907-05-9052)

Recommended Add-ons:

Throttle Bodies:

• Pro 90mm Silver (P/N 309-05-0900)

• Pro 90mm Black (P/N 309-05-0905)

Sensors:

• TPS Sensor (P/N 352-05-1400)

• MAP Sensor 2.5 Bar (P/N 352-05-1525)

• MAP Sensor 4 Bar (P/N 352-05-1510)

Thermal Gaskets:

• Intake Manifold Gasket (P/N 372-05-0275)

• Throttle Body Gasket Pro 90mm (P/N 372-99-0090)

Vehicle Fitment:
Compatible with the following D-Series VTEC engines:

• Honda D15B

• Honda D15Y

• Honda D16Y

• Honda D16Z

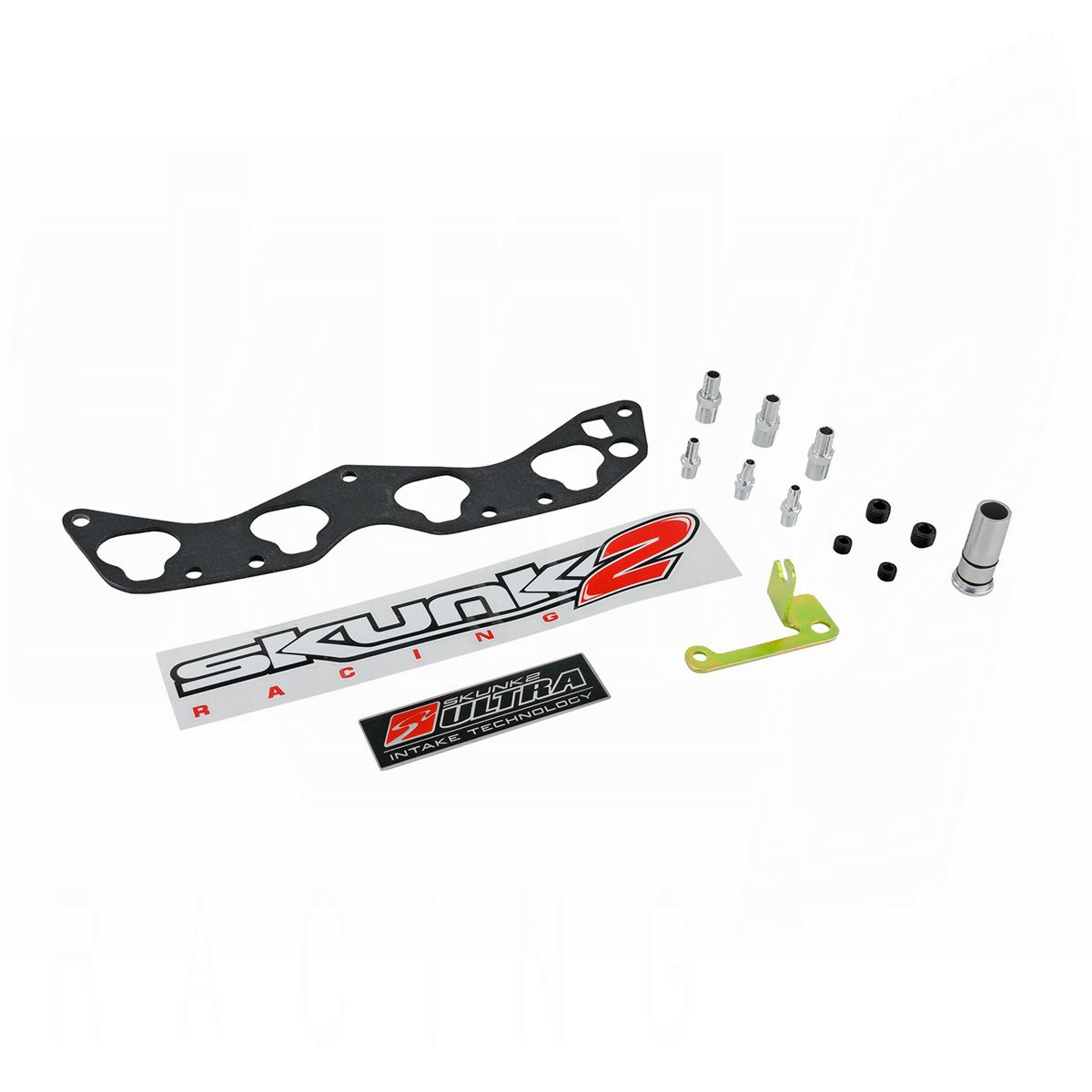

Included:

• (1) Skunk2 Ultra Race Intake Manifold

• (1) Intake Manifold Gasket

• Mounting Hardware
