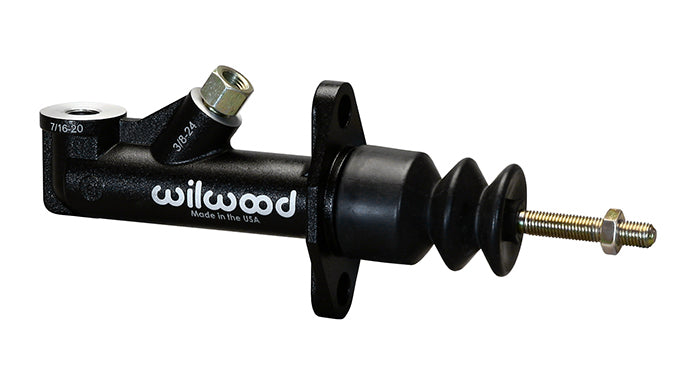

Wilwood GS Compact Remote Master Cylinder – 260-15089

Wilwood’s GS Compact Remote Master Cylinder is a compact, rebuildable master cylinder designed for high-pressure brake systems. It features a durable die-cast aluminum body with a black e-coat finish and a refined internal piston and return spring for positive pressure control and quick release. Designed for use with a remote reservoir and a standard 7/16-20 threaded inlet.

Key Features & Specs

• Compact rebuildable master cylinder
• High-pressure die-cast aluminum body
• Black e-coat protective finish
• Standard 7/16-20 threaded inlet
• Refined return spring and piston assembly
• Remote reservoir design
• Single outlet configuration

Specifications

• Bore Size: 5/8"
• Area: 0.310 in²
• Stroke: 1.25"
• Volume: 0.39 cu in
• Material: Aluminum
• Finish: Black E-coat
• Outlets: 1
• Reservoir Type: Remote
